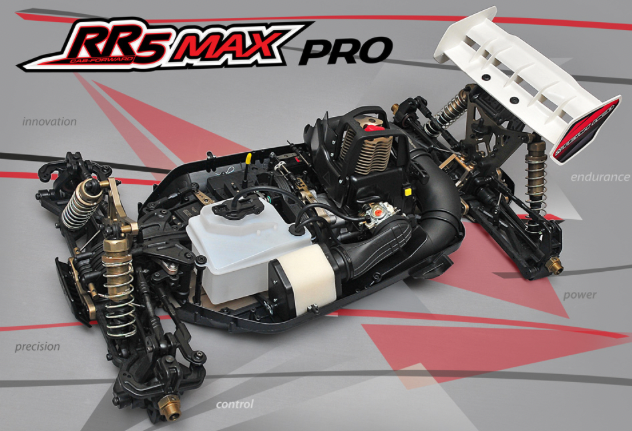

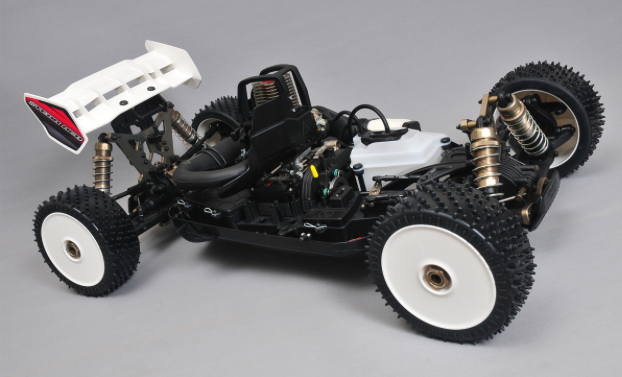

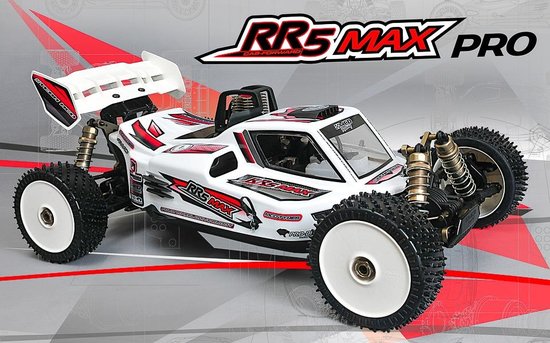

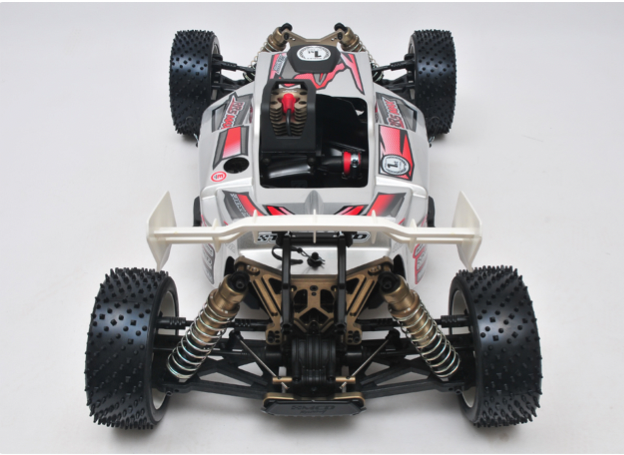

MCD RR5 Buggy Max Pro CF Chassis

• One of the Best Premium Buggy

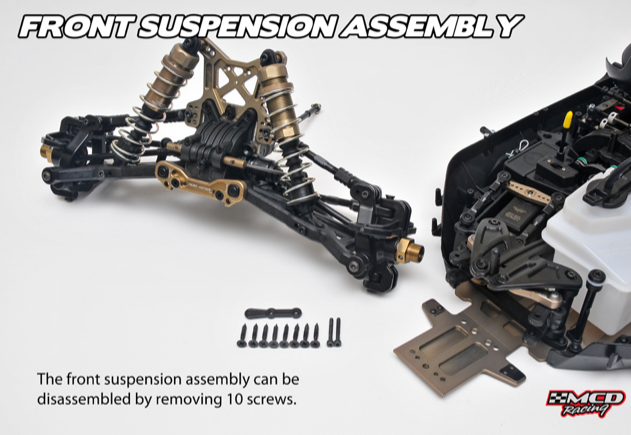

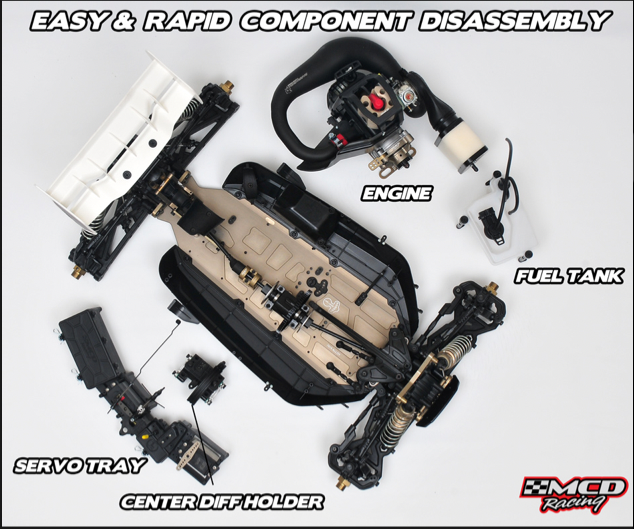

• Easy assembly & disassembly if required
• Fast & uncomplicated maintenance

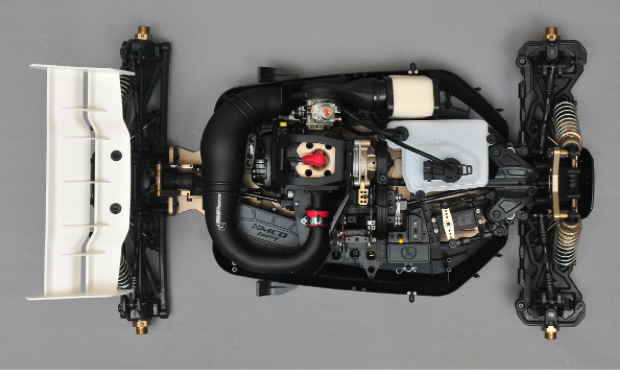

• Centralized and compact parts arrangement in the chassis
• Ultra-durable parts for high performance and maximum reliability
• 5th generation promises maximum fun & performance

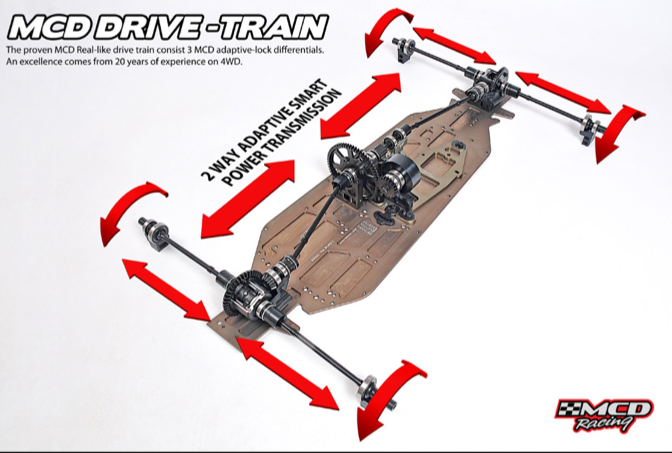

• Sophisticated permanent 4WD all-wheel drive
• 3-ball drive shafts (ball drive)
• Pro-Bite clutch kit (optional)

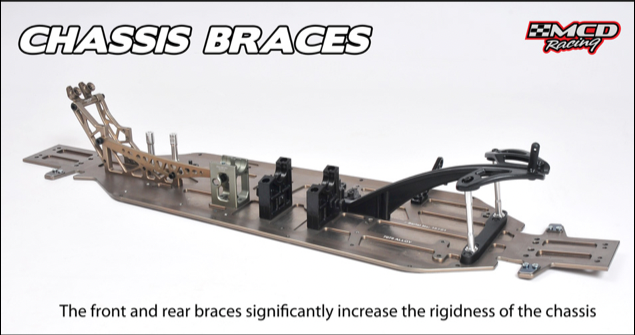

• 7075 aluminum rear center chassis brace
• "Lay Shaft" middle shaft mount made of 7075 aluminum
• Clutch bell holder made of 7075 aluminum including bracing plate

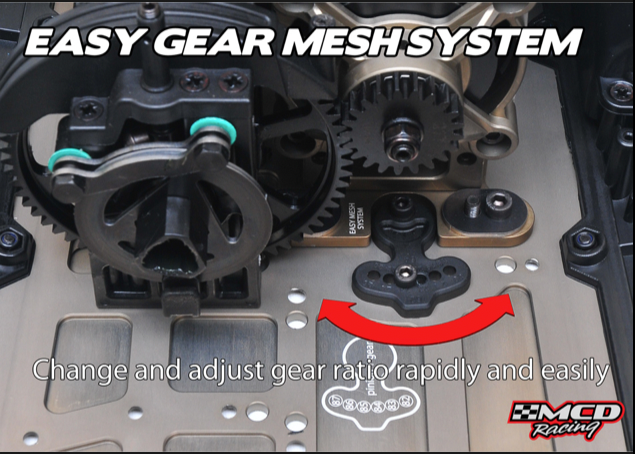

• Simple quick adjustment system for pinion play

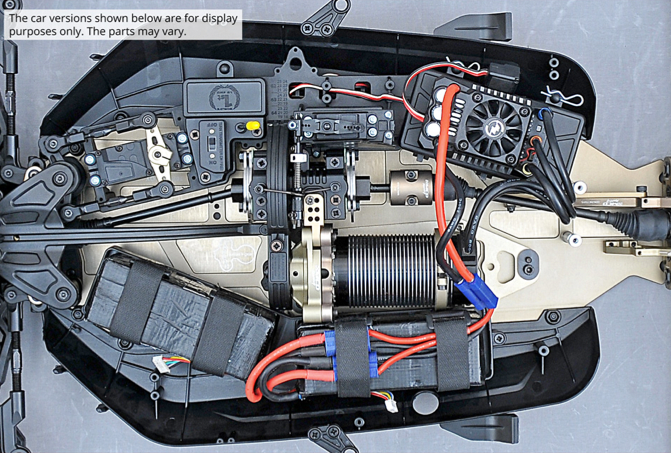

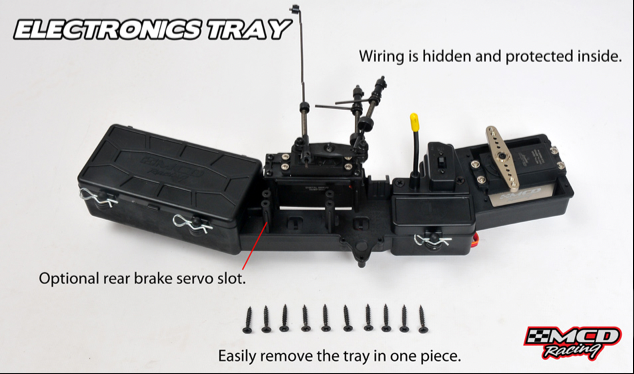

• One-piece electronic unit for quick & safe disassembly
• CNC machined and anodized 7075 T6 aluminum chassis
• Reinforced plastic wings

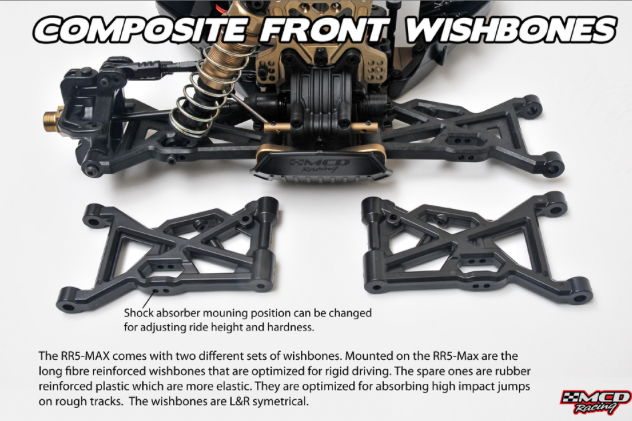

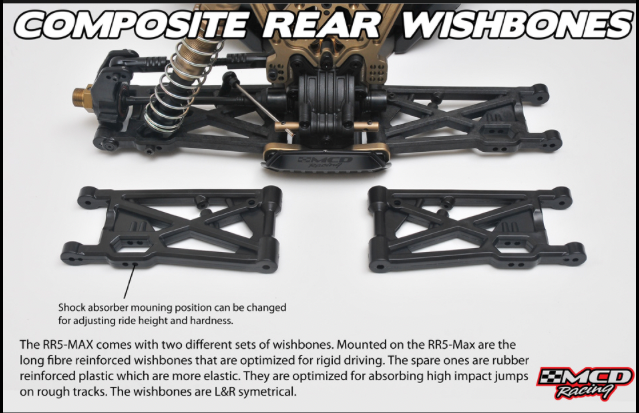

• Swingarm mounts front & rear with numerous setup options made of 7075 aluminum
• Easy-to-open differential boxes front & rear
• Easy-to-open center differential mount

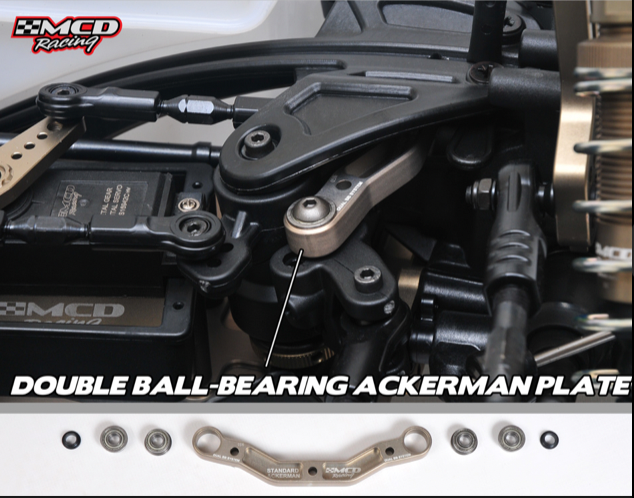

• Double ball bearing "DBB" Ackermann plate
• Stable and aerodynamically adapted side chassis trays

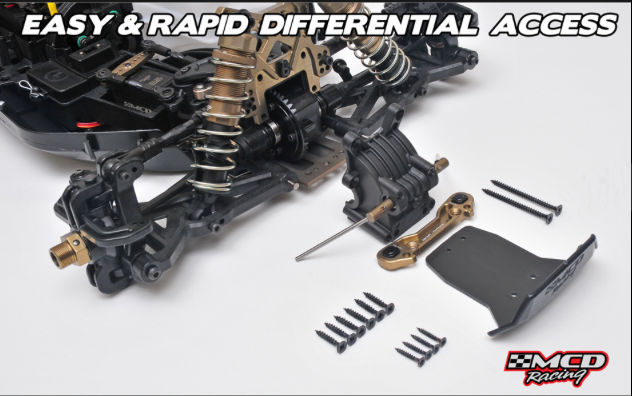

• Extremely fast access to the front, rear and center differentials

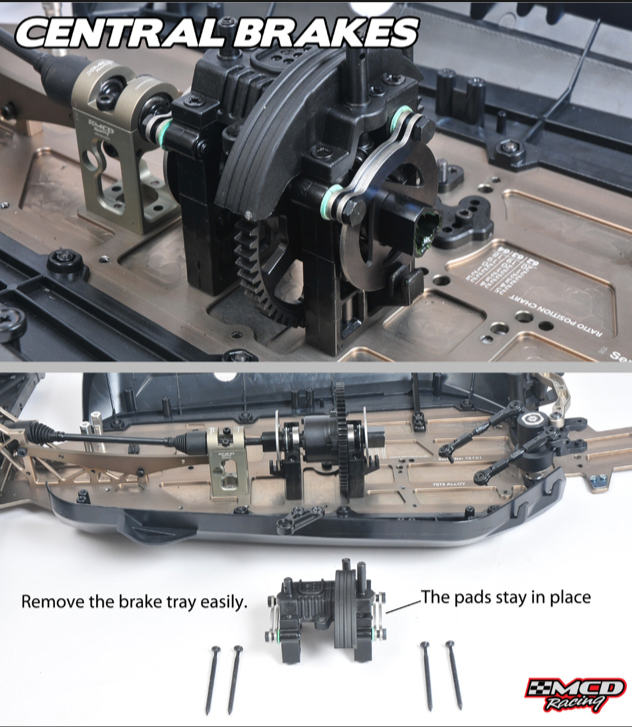

• Ultra powerful and individually adjustable braking system for front & rear

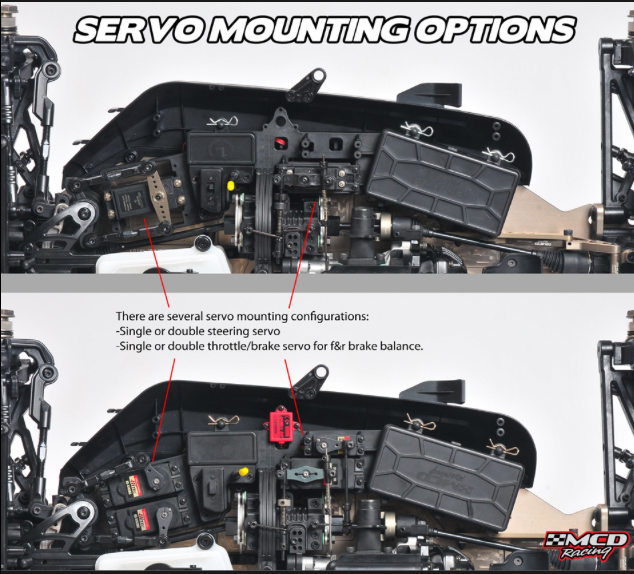

• optional 4th servo bay for individual brake servo of the rear axle
  (this way the brake distribution from front to rear can be adjusted using the mixing function of the remote control and does not have to be done via the mechanics on the car)
• Adjustable chassis stiffness

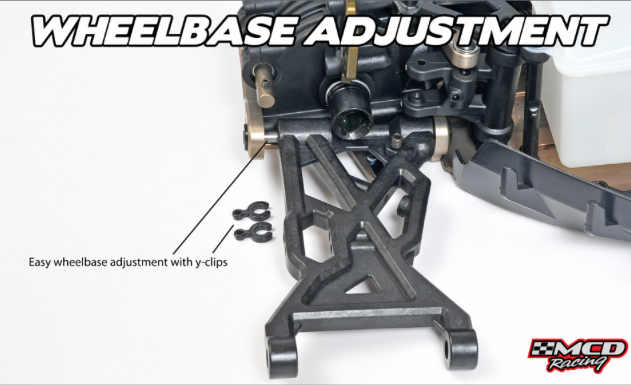

• Adjustable wheelbase

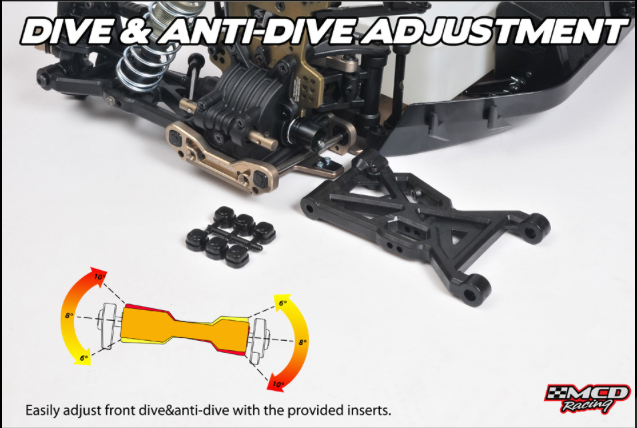

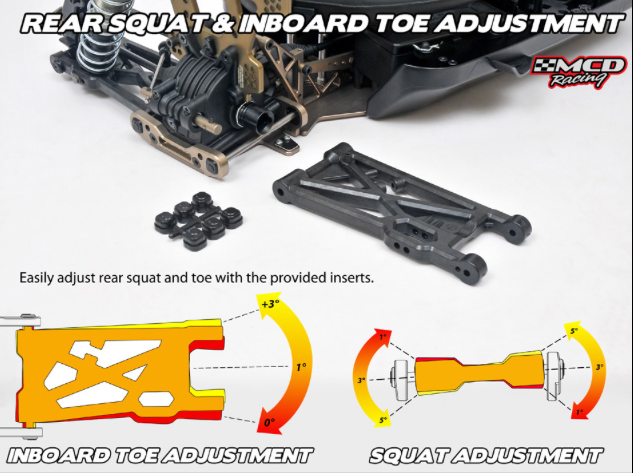

• Adjustable inside toe-in & squat

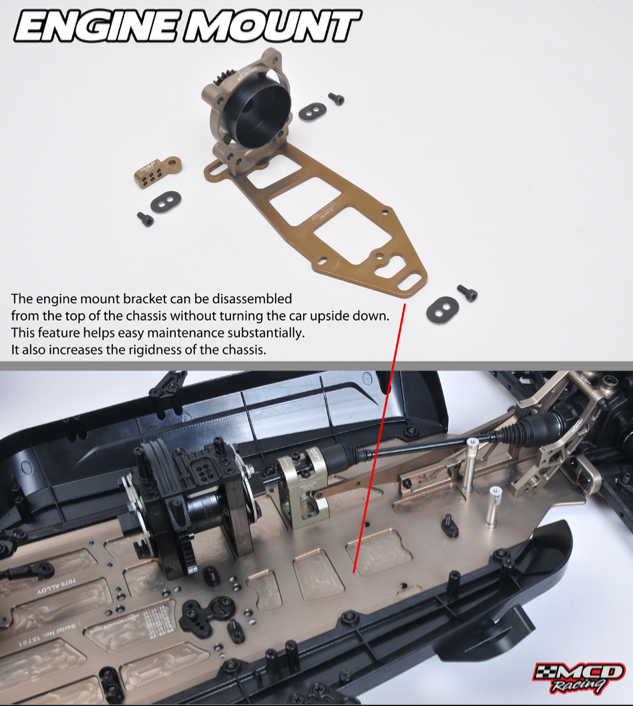

• Engine quick change system
• 8mm thick extra light 7075 aluminum shock absorber towers front & rear
• optimized mounting and adjustment holes for the shock absorber setup

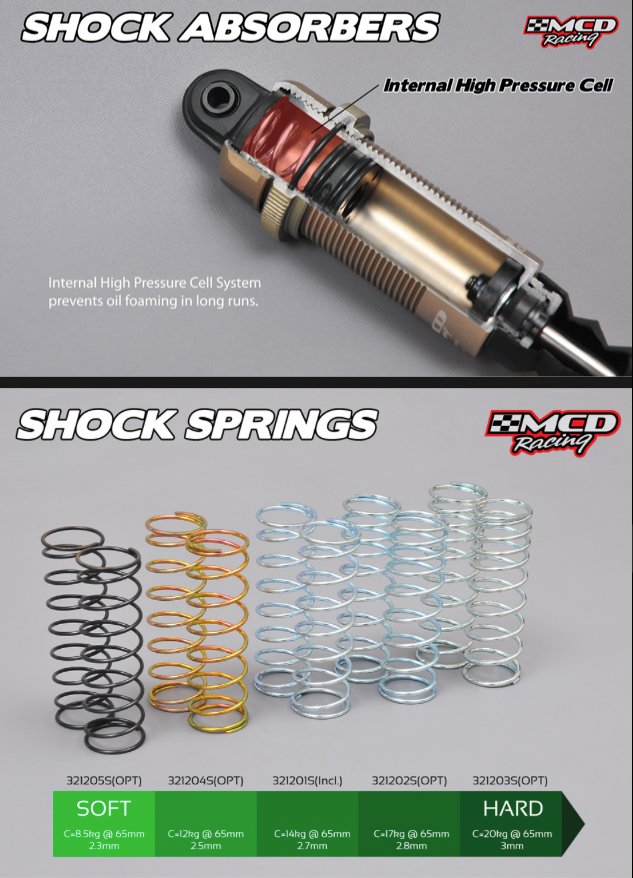

• "Coil Over" extended shock absorbers with High Pressurized Cell™ System
• Aluminum shock absorber housing
• Ultra hardened steel drive gears

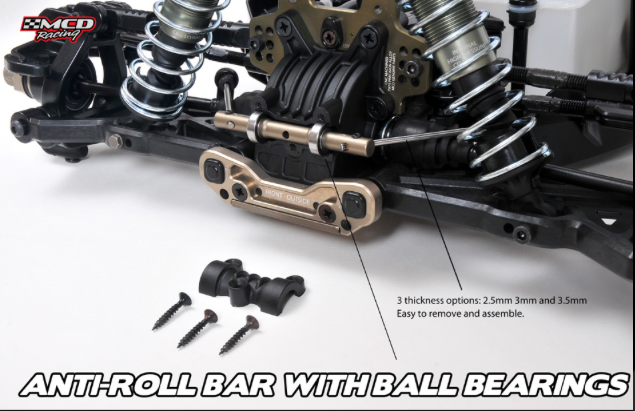

• Double ball-bearing stabilizers on front and rear axle
• "No Stress Effect" polyamide bumpers front & rear
• Mega durable ball drive system

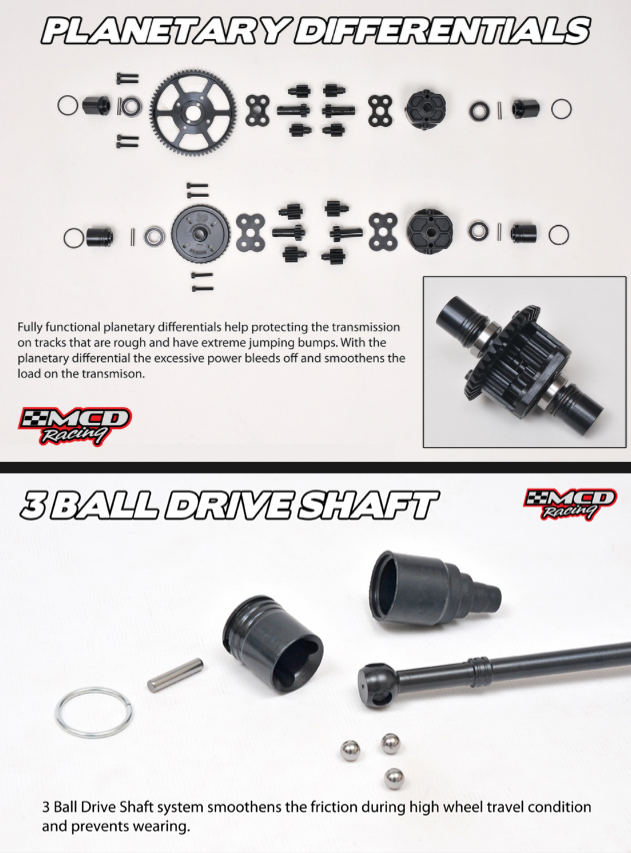

• open planetary differentials with oil-adjustable locking timing
• Super V5 air cooling system (petrol version)

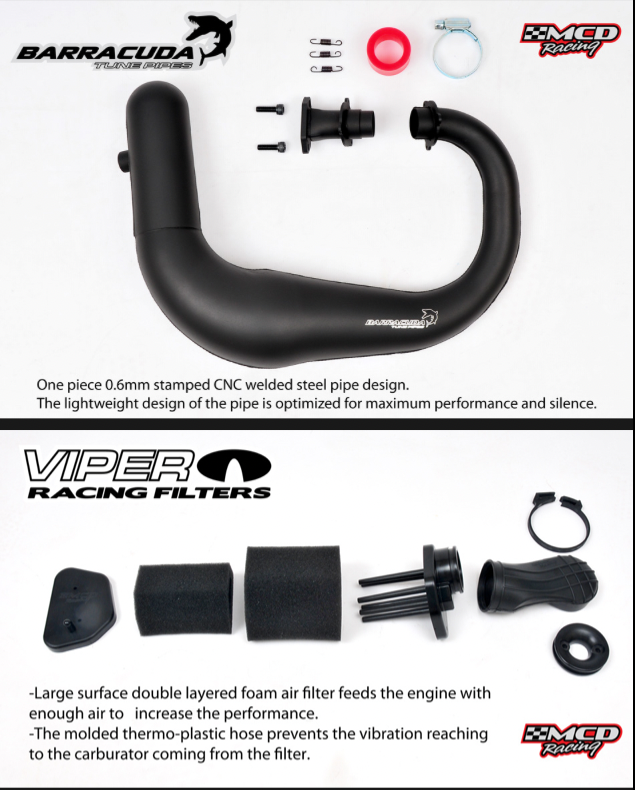

• Viper Racing air filter with two coupled foam filters and thermoplastic hose (petrol version)

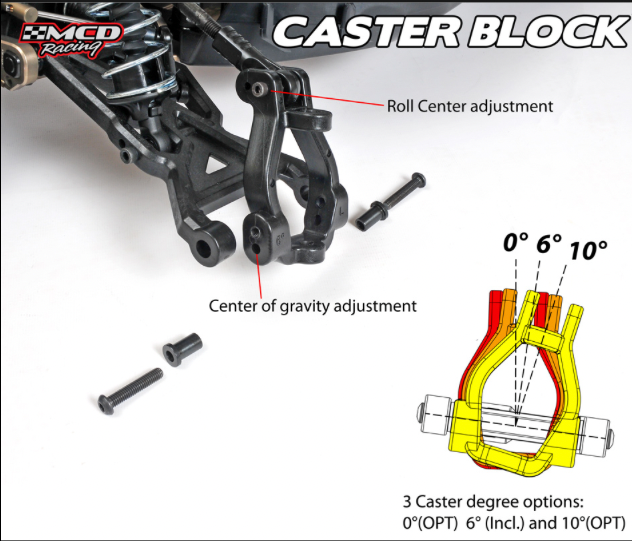

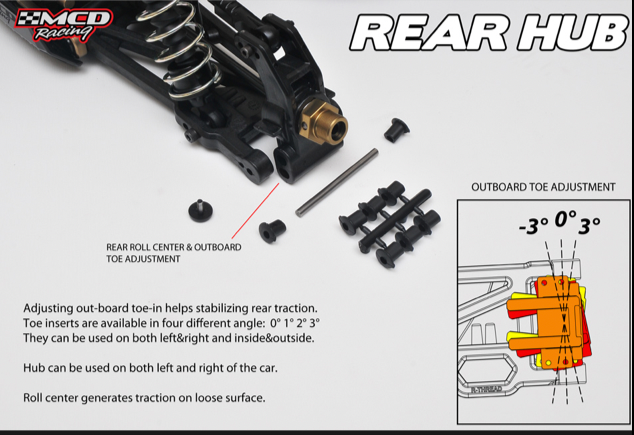

• Adjustable roll center on the top & bottom hubs
• Barracuda G-Performance Reso pipe set (optional)
• EFRA compliant AirBocx air filter (optional)
• Fully adjustable chassis (e.g. roll center, center of gravity, caster, kick-up, camber, caster, wheelbase, toe-in, and much more)

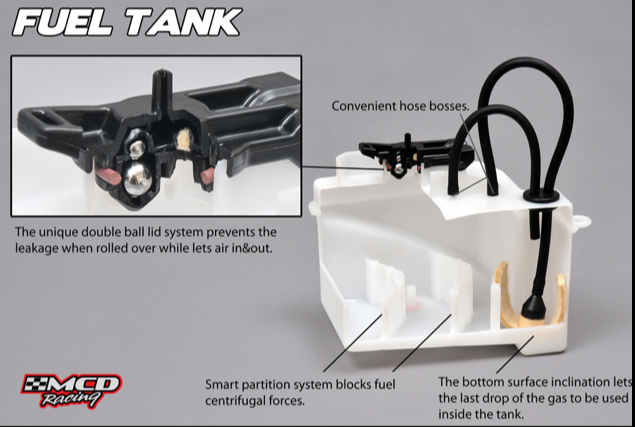

• Modified fuel tank with finned filter and vibration dampers (petrol version)
• Aluminum engine/carburettor insulator with thermal break (optional)

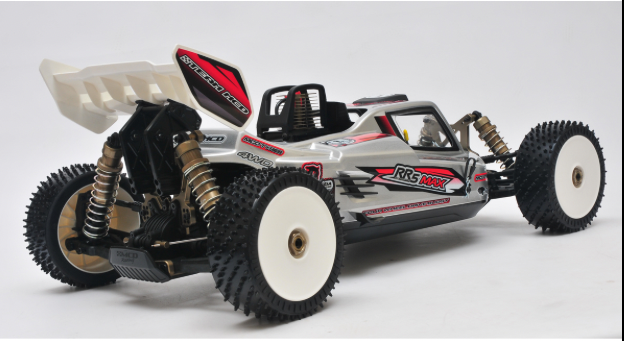

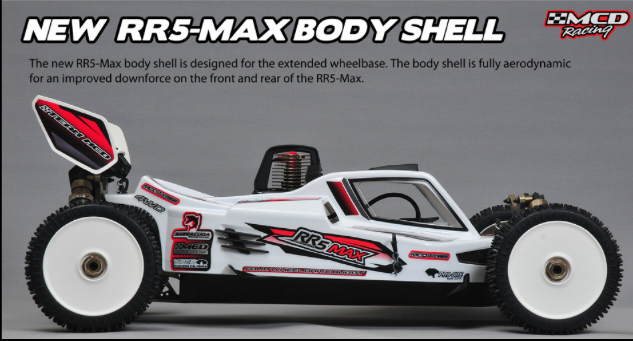

• Cap Forward "CF" MAX Pro Body
• Body with detailed fittings and decal sheet
• Rubber protective covers on dampers and drive shafts
